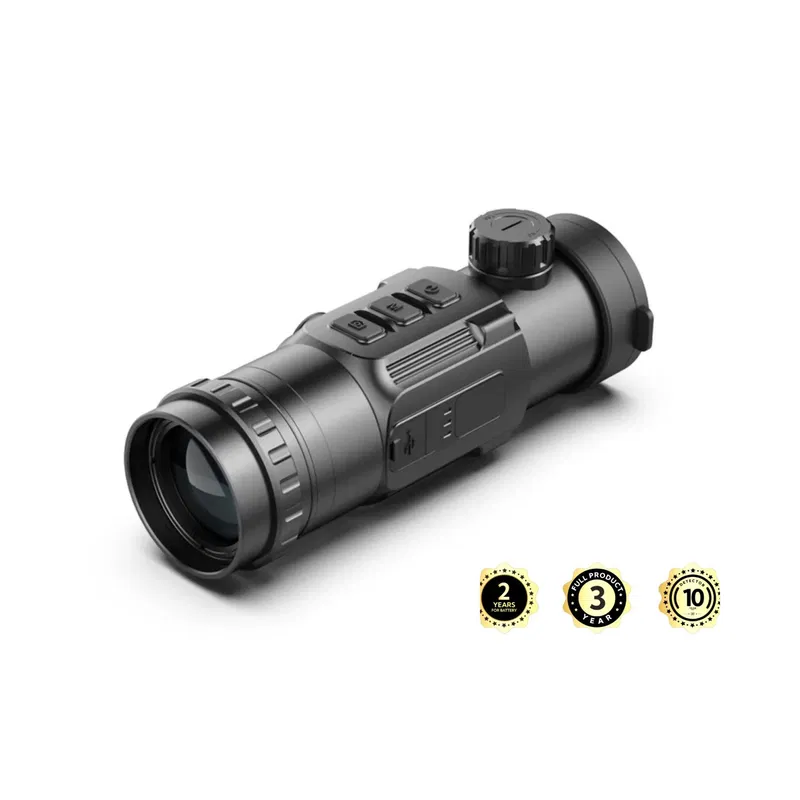

InfiRay - Clip-On CH50W
Why do we recommend it?
Because it is one of the lightest and most compact in its category.
Because its sensor size guarantees impressive resolution.
Because it comes with memory, photo, video and WiFi sharing
Because multiple shooting profiles can be saved in one device.
Because many people already use it with satisfaction.
Because the image of the CH50 W is unrivaled.
Without a complicated eyepiece mechanism, significantly higher accuracy and a larger visible image.
The InfiRay Xclip CH50 W is the second edition of an infrared thermal imaging camera device equipped with a completely newly developed sensor and equipped with a well-proven device housing. Extremely compact, extra light, extremely robust design. Thanks to its imaging technology - unlike night vision - it does not require an external light source, and its operation is not adversely affected by strong light effects.
The image quality is excellent for the CH50 W. The experience provided by the display is more detailed, more accurate and more spectacular than ever before. Compared to its predecessor, the renewed Sony OLED display takes image quality to a new level.
Due to the resolution of the sensor, we can forget about the pixels here. It can also be used at night or in unfavorable conditions to observe objects in areas covered with grass, bushes and tree branches, even in rainy, foggy and smoggy conditions. By default, it is a 1x magnification device, but the software also allows 2x or 4x digital magnification - even with a binocular sight. Thanks to the sensor's proportionality - pixel size - focal length, it is designed to cope with longer distances with a moderately narrow field of view. It is capable of impressive performance and precision on a scope.
The factory set does not include an eyepiece, as the main goal of the development was to use it as a ballast to provide the user with even greater and more reliable accuracy.
The built-in lens element is now fixed and significantly larger, so the primary usability and imaging experience has been improved in all aspects, and the risk of errors due to user inattention has been reduced during use. The manufacturer includes a threaded eyepiece rubber, with the installation of which the device can also be used as a viewfinder up to 4x digital magnification. Overall, in terms of its usability, the manufacturer tried to make the device "super safe".
When used as a sight on a high-quality binocular sight, it can be used even at 15x magnification.
Its extremely strong housing was designed with the toughest conditions of use in mind. Its compact size and weight make it practical to use as a spotting scope adapter. Our daytime binoculars can be converted into thermal imaging binoculars in an instant.
By knowing the sensor and display of the InfiRay thermal imaging cameras, and the image you see, it provides a unique experience during use. In addition to the electronic compass, inclinometer and accelerometer, countless other really useful features make it a really great tool.
With a quick button, you can switch between the four color modes (black highlight, white highlight, red highlight and palette). By adjusting the brightness of the display, we can make the image relaxing or strong in a wide range, we can adjust the contrast. You can choose between automatic and manual calibration, you can activate the Bluetooth connection (remote control accessory) and the video output. In addition, we also have the possibility to adjust the orientation of the display from the menu. Its 1024x768 resolution provides a fantastically clear image both during the day and at night, thanks to the well-engineered focus dial the image is always extremely convincing. Using the Inactive Pixel Correction menu option also solves the maintenance of the display.
The adapter has a USB-C output, which can be connected with a standard USB and analog video output (PAL system) with the supplied cable. It is powered by 2 CR123 batteries or a rechargeable RCR123 battery. Exact information in "Accessories".
Overall, it can be said that it is one of the most balanced devices on the market in terms of know-how, performance, parameterization and durability.
Its smaller brother, the CL42, has already convinced many users of its durability and reliability. With the new sensor, these valuable features are now combined with outstanding image performance.
- Secure payments!
- Questions? Send us an email or call us.
- info@jaktochsportskytte.se
- 0563 - 32 45 45
Description
Article no.: IR-CH50W
InfiRay CH50 W - smart and spectacular modifications
Why do we recommend it?
Because it is one of the lightest and most compact in its category.
Because its sensor size guarantees impressive resolution.
Because it comes with memory, photo, video and WiFi sharing
Because multiple shooting profiles can be saved in one device.
Because many people already use it with satisfaction.
Because the image of the CH50 W is unrivaled.
Without a complicated eyepiece mechanism, significantly higher accuracy and a larger visible image.
The InfiRay Xclip CH50 W is the second edition of an infrared thermal imaging camera device equipped with a completely newly developed sensor and equipped with a well-proven device housing. Extremely compact, extra light, extremely robust design. Thanks to its imaging technology - unlike night vision - it does not require an external light source, and its operation is not adversely affected by strong light effects.
The image quality is excellent for the CH50 W. The experience provided by the display is more detailed, more accurate and more spectacular than ever before. Compared to its predecessor, the renewed Sony OLED display takes image quality to a new level.
Due to the resolution of the sensor, we can forget about the pixels here. It can also be used at night or in unfavorable conditions to observe objects in areas covered with grass, bushes and tree branches, even in rainy, foggy and smoggy conditions. By default, it is a 1x magnification device, but the software also allows 2x or 4x digital magnification - even with a binocular sight. Thanks to the sensor's proportionality - pixel size - focal length, it is designed to cope with longer distances with a moderately narrow field of view. It is capable of impressive performance and precision on a scope.
The factory set does not include an eyepiece, as the main goal of the development was to use it as a ballast to provide the user with even greater and more reliable accuracy.
The built-in lens element is now fixed and significantly larger, so the primary usability and imaging experience has been improved in all aspects, and the risk of errors due to user inattention has been reduced during use. The manufacturer includes a threaded eyepiece rubber, with the installation of which the device can also be used as a viewfinder up to 4x digital magnification. Overall, in terms of its usability, the manufacturer tried to make the device "super safe".
When used as a sight on a high-quality binocular sight, it can be used even at 15x magnification.
Its extremely strong housing was designed with the toughest conditions of use in mind. Its compact size and weight make it practical to use as a spotting scope adapter. Our daytime binoculars can be converted into thermal imaging binoculars in an instant.
By knowing the sensor and display of the InfiRay thermal imaging cameras, and the image you see, it provides a unique experience during use. In addition to the electronic compass, inclinometer and accelerometer, countless other really useful features make it a really great tool.
With a quick button, you can switch between the four color modes (black highlight, white highlight, red highlight and palette). By adjusting the brightness of the display, we can make the image relaxing or strong in a wide range, we can adjust the contrast. You can choose between automatic and manual calibration, you can activate the Bluetooth connection (remote control accessory) and the video output. In addition, we also have the possibility to adjust the orientation of the display from the menu. Its 1024x768 resolution provides a fantastically clear image both during the day and at night, thanks to the well-engineered focus dial the image is always extremely convincing. Using the Inactive Pixel Correction menu option also solves the maintenance of the display.
The adapter has a USB-C output, which can be connected with a standard USB and analog video output (PAL system) with the supplied cable. It is powered by 2 CR123 batteries or a rechargeable RCR123 battery. Exact information in "Accessories".
Overall, it can be said that it is one of the most balanced devices on the market in terms of know-how, performance, parameterizability and durability.
Technical Data:
Thermal sensor: 640x512 12μm
Display: 1024x768 color OLED
Magnification range (x): 1 - 4
Lens: 50mm
User manual
Base magnification (x): 1
Material: composite, shockproof
Eye relief: 30 mm
Connectors: USB-C, PAL RCA
Other features: 32 GB internal memory, photo and video recording,
WiFi live stream
Power supply: 2x CR123 (RCR123)
Detection distance: 2597 m (1.7 x 0.5 m) human body
Manufacturer: InfiRay
Warranty: 3 years manufacturer's warranty
Frame rate: 50 Hz
Screen color modes: 4 modes: Black Hot, White Hot, Red Hot, Palette
Field of view: 8.8° x 7.0°
Close focusing distance (m): 2
Shock resistance: 6500 J
Dimensions: 175 x 74 x 68 mm
Sensor: 640x512 resolution uncooled microbolometer; pixel size: 12 μm; refresh rate: 50Hz; NET <= 50 mK
Color: black

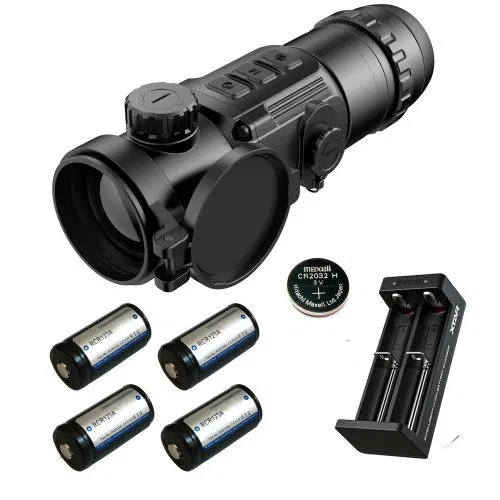

Included: thermal clip-on (without eyepiece), bluetooth remote control, soft zippered case, IEB-2 battery compartment extender, 2 sets (4 pcs) of rechargeable 16650 battery and a two-bay charger, CR2032 battery for the remote control
Weight (g): 570
Operating time: up to 4 hours with RCR123 batteries
Water resistance: IP66
